Target hardness range for tungsten carbide coated rollers:
•HV1100–HV1500 is considered the acceptable range
•If hardness is too low (e.g., below HV900), it indicates insufficient coating density or abnormal spraying parameters
•Excessive hardness accompanied by increased brittleness is also considered a failure
Unlike chromium-plated rollers, the working surface of a tungsten carbide coated roller is not metallic chromium, but a composite structure composed of high-hardness ceramic phase particles and a bonding phase.
This is the fundamental premise for why tungsten carbide coated rollers are considered "more wear-resistant."
Standard industrial tungsten carbide coated rollers typically consist of 2-3 coating layers:
1. Bond Coat → Improves adhesion to the base metal
2. Interlayer (optional) → Enhances coating stability or buffers stress
3. Top Coat → Provides final hardness, abrasion resistance, and corrosion resistance
In industrial production, a metallic binder phase must be added to form a fusible, bondable, and depositable composite powder, which is a crucial foundation for the successful manufacture of tungsten carbide coated rollers.
There is no roller that is "absolutely better than tungsten carbide coated rollers".
There are only rollers that are more suitable for specific operating conditions.
Tungsten carbide coated rollers are one of the most widely used, high-performance, and highly adaptable types of rollers in industry.
Common spraying processes include: HVOF (High-Voltage Oxygen Fuel Fluid) spraying, plasma spraying, flame spraying, and cold spraying. The characteristics of each are as follows:
Tungsten carbide coated rollers are used in a wide range of applications, including:
• Plastic films
• Metal foils
• Functional materials
• Coating processes
• Paper processing
• High-precision calendering
• High-wear environments
In the industrial field, the hardness of tungsten carbide coated rollers typically ranges from HV1100 to HV1600.
These hardness parameters are far higher than those of ordinary steel rollers (HRC 30–55 ≈ HV 300–550) and significantly higher than chrome-plated surfaces (HV 800–1000).

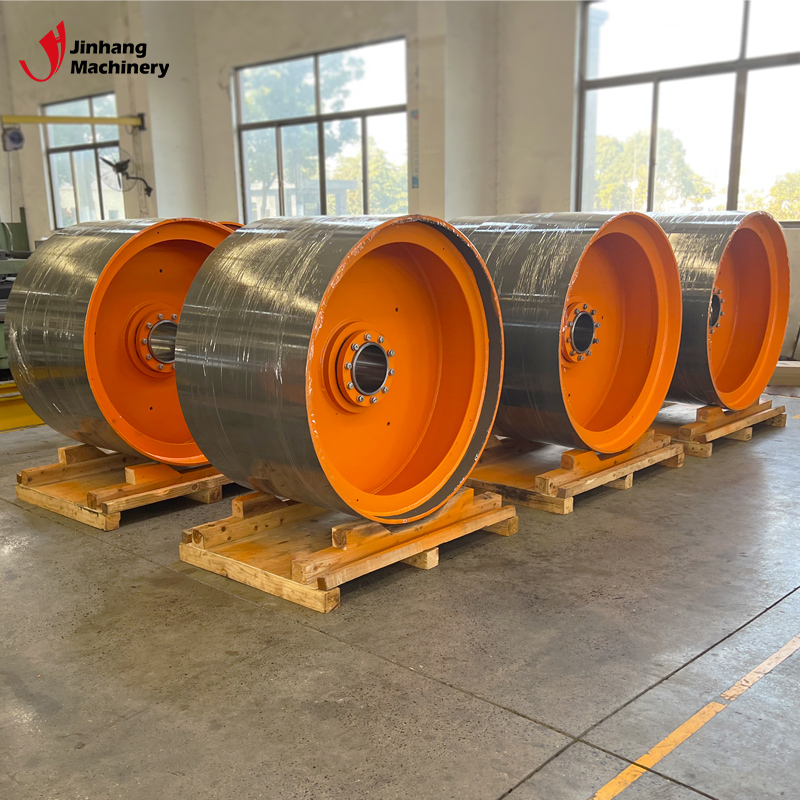

A magnet will not attract the tungsten carbide coating itself.
However, whether a magnet can attract the entire "tungsten carbide coated roller" depends on whether the roller substrate is magnetic.
For example:
• If the substrate is carbon steel → magnetic → a magnet can attract it.
Benefits of tungsten carbide coated roller:
1. Excellent wear resistance
2. Superior corrosion resistance
3. High temperature performance
4. Improve production efficiency
5. Extend service life
6. Improve surface finish
