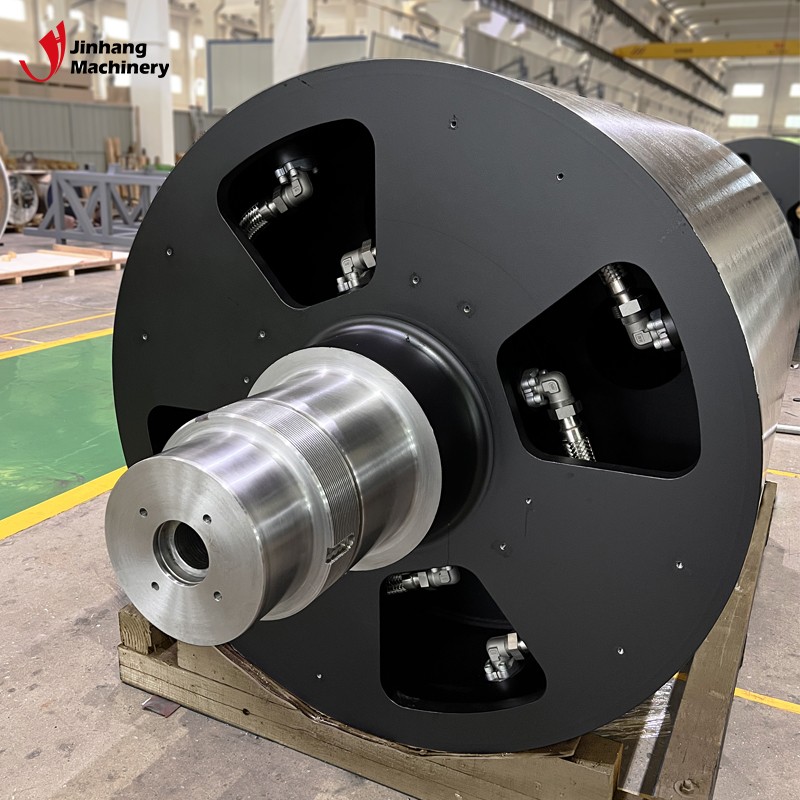

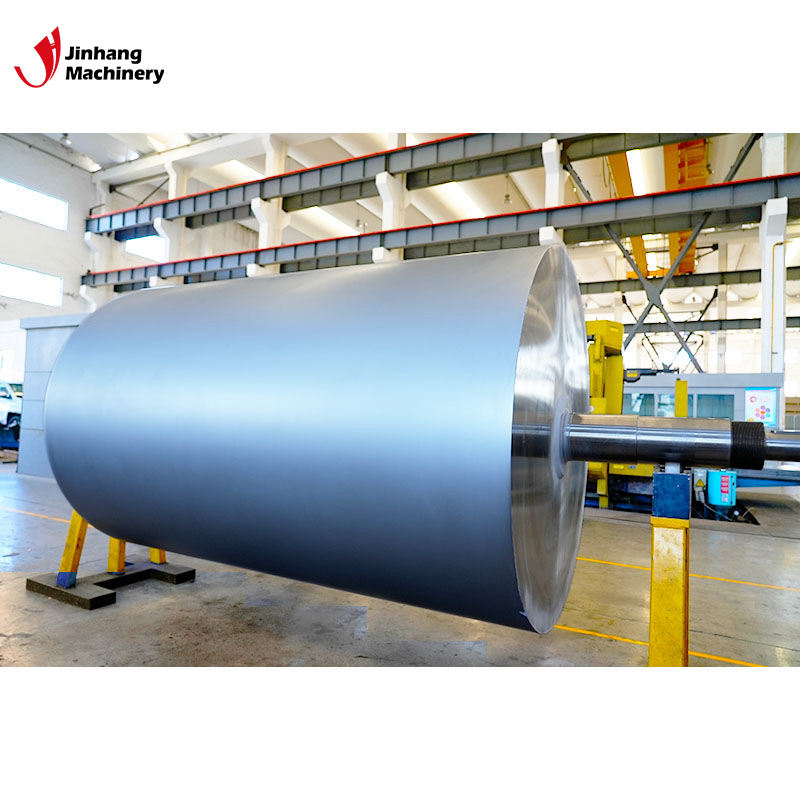

Industrial Heating Rollers: Oil-Heated vs. Water-Heated—Which is Better?

In modern industrial heat-processing equipment, "heating rollers" play a pivotal role. Whether for films, paper, textiles, rubber, composite materials, or other industries requiring heat transfer and heat setting via a roller body, heating rollers are core components for achieving precise temperature control and surface treatment. The two most common internal heating media used in these rollers are thermal oil and water.

When selecting a heating roller type, many enterprises ask the same question:

"Which is better: an industrial oil-heated roller or a water-heated one?"

There is no absolute answer to this question, but there is a clear logic for making the choice. To select the right roller, one must first understand the differences between these two heating media regarding thermal performance, stability, safety, energy consumption, and application scenarios.

This article provides a systematic analysis of this core issue to help enterprises accurately select the heating roller best suited to their specific process requirements.

Why distinguish between oil-heated and water-heated industrial rollers?

In industrial equipment, the primary function of a heating roller is to transfer heat from within the roller body to create a stable, uniform temperature zone on the surface, thereby enabling the heating, melting, setting, or drying of external materials.

However, different industries have vastly different requirements regarding temperature ranges, heating rates, thermal uniformity, and stability; therefore, the appropriate heating method must be selected based on the characteristics of the heating medium.

The fundamental differences between thermal oil and water stem from their physical properties:

Consequently, the design structure of industrial heating rollers—such as internal flow channel width, pressure resistance, sealing mechanisms, and circulation systems—must be tailored to the specific characteristics of the medium.

In other words, choosing a heating roller based on the heating medium essentially means choosing between different levels of temperature control capability and process quality.

Oil-heated vs. water-heated: How significant is the difference in temperature capability?

Hot-water heated rollers: Suitable for medium-to-low temperatures (≤180°C)

Since the boiling point of water is 100°C, achieving higher temperatures requires a high-pressure system. Typical industrial operating temperature ranges are as follows:

•Atmospheric pressure: 50°C–95°C

•Low/Slight pressure: 100°C–130°C

•High pressure: 150°C–180°C (requires pressure vessel certification)

Consequently, hot-water heated rollers are limited in their maximum temperature and are unsuitable for industries requiring high-temperature melting or heat setting.

The applicable temperature range dictates the industries in which they are used, such as:

•Textile drying

•Light heat treatment of packaging materials

•Thermal lamination of wood-grain finishes

•General drying processes

Thermal-oil heated rollers: Suitable for medium-to-high temperatures (150–350°C)

Thermal oil can stably achieve high temperatures of 180–350°C at relatively low pressures.

This temperature range is ideal for:

•Heat setting during film stretching

•Rubber vulcanization

•Controlled-temperature cooling after plastic extrusion

•High-temperature calendering

•Hot rolling for metal composites

•High-temperature coating

Therefore, if a process requires high temperatures, the conclusion is straightforward: thermal-oil heated rollers are clearly superior to hot-water heated rollers.

Which type of heated roller offers better temperature stability?

In many industrial processes, temperature stability is even more critical than the maximum temperature limit, as it directly affects product flatness, gloss, shrinkage, and physical properties.

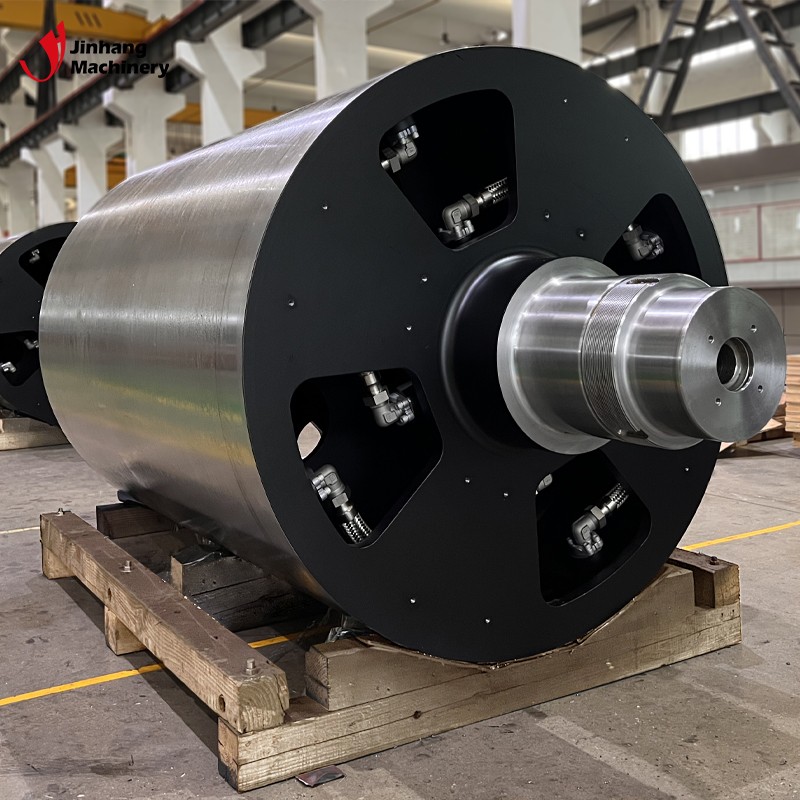

Characteristics of hot-water heated rollers

Water has a high specific heat capacity (4.2 kJ/kg·℃), offering a theoretical advantage; however, practical application reveals the following drawbacks:

•Prone to scale formation, which impairs heat transfer

•High pressure and significant temperature fluctuations in the high-temperature range

•Risk of localized steam formation, compromising stability

•High operating costs for high-temperature circulation systems

Consequently, water is better suited for processes involving lower temperatures and less stringent requirements regarding temperature stability.

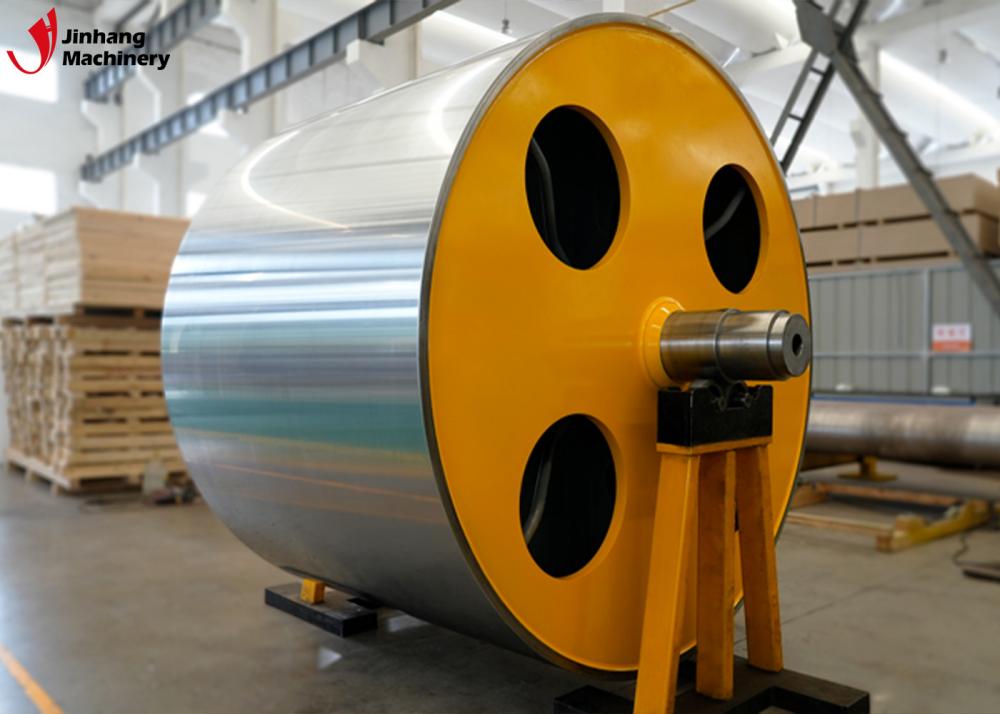

Characteristics of Thermal Oil Heated Rollers

The properties of thermal oil give it distinct advantages in industrial temperature control applications:

•High thermal stability; no risk of steam hammer (steam shock)

•Minimal temperature fluctuation in high-temperature ranges

•Maintains temperature control precision within ±1°C

•No scale formation; heat exchange efficiency remains unaffected

•Low thermal inertia; more uniform heating and cooling

Consequently, industries requiring precise temperature control—such as plastic film stretching, rubber processing, and coating—almost exclusively choose thermal oil heated rollers.

Are thermal oil heated rollers more energy-efficient than water-heated rollers?

Energy efficiency depends on two key factors:

1.Thermal stability of the heat transfer medium

2.Heat transfer efficiency

Energy-saving characteristics of water

•High thermal conductivity

•Higher efficiency at lower temperatures

•Efficiency drops due to scale formation

•High-pressure systems increase energy consumption

Overall, water is more energy-efficient in low-to-medium temperature ranges but loses its advantage at high temperatures.

Energy-saving characteristics of thermal oil

•No scale formation; maintains excellent heat transfer capabilities over the long term

•Remains stable at high temperatures

•Smoother heat absorption and release compared to water

•Reduces energy waste caused by temperature fluctuations

Therefore, for enterprises operating continuously at high temperatures, thermal oil heated rollers offer superior energy efficiency.

Which type of heated roller is easier to maintain?

Maintenance is a significant component of operational costs.

1. Maintenance challenges of water-heated rollers

Common issues:

•Scale accumulation

•Pipe corrosion

•Pump wear

•Safety inspections for high-temperature, high-pressure systems

•Frequent recalibration due to temperature fluctuations

Consequently, maintenance demands become significant after a year of operation.

2. Maintenance advantages of thermal oil heated rollers

•No scale formation

•No need for high-pressure systems

•Low risk of pipe corrosion

•High stability results in less frequent maintenance

The downside is the need for periodic thermal oil replacement; however, the interval is long (typically 1–2 years), so it does not impact overall efficiency.

Conclusion: Thermal oil heated rollers are easier to maintain than water-heated rollers.

From a safety perspective, which is more reliable: thermal oil or water?

Safety is a critical factor that enterprises cannot overlook.

1. Safety issues with water-heated rollers

•High-pressure operation is required for high-temperature zones, posing a risk of pipe bursts.

•Steam content affects system stability.

•Pressure relief devices and valves require regular inspection.

2. Safety issues with oil-heated rollers

•Leakage of high-temperature oil can pose a fire hazard.

•The system requires reliable sealing.

However, since they do not need to withstand high pressure, the overall risk is actually lower than that of water-heated systems. Overall, oil-heated rollers offer better control and reliability regarding industrial safety.

Which type of heating roller is better suited for high-precision processing?

If the process demands extremely high standards for material flatness, dimensional stability, and gloss, temperature stability becomes the most critical factor.

High-precision applications typically use: Oil-heated rollers

Reasons:

•Minimal temperature fluctuation

•Superior surface temperature uniformity

•Unaffected by localized boiling points

•More uniform heat transfer fluid flow

•Better suited for high-temperature plastics processing

For example, "setting rollers" and "calendering rollers" in the film industry almost exclusively use oil-based heating methods.

How do you choose the right heating roller based on process requirements?

Here is a practical selection guide:

✔ If you need ≤160°C:

Choose: Water-heated roller

Suitable processes:

•Drying

•Low-to-medium temperature heat setting

•Heat treatment of lightweight materials

•Heating equipment with moderate temperature requirements

✔ If you need 160–350°C:

Choose: Oil-heated roller

Suitable processes:

•High-temperature heat setting

•Plastic melt processing

•Rubber vulcanization

•Precision surface heat treatment

•High-precision film materials

✔ If you need very high temperature control precision (within ±1°C)

Choose: Oil-heated roller

✔ If you want to reduce long-term maintenance costs

Choose: Oil-heated roller

✔ If your equipment is for low-temperature, high-volume drying

Choose: Water-heated roller
