How Long Do Industrial Mirror Finish Rollers Last?

In the high-precision processing industry, mirror finish rollers are critical components that influence product surface quality, thickness uniformity, and gloss stability. Whether in the calendering of plastic films, the processing of metal foils, the supercalendering of electronic materials, the production of lithium-ion battery separators, packaging coating applications, or the preparation of functional materials, mirror finish rollers play a pivotal role.

Given that mirror finish rollers require extremely high surface roughness precision (typically Ra 0.02 μm or less), as well as strict tolerances for runout, coaxiality, hardness, and plating quality, many enterprises are deeply concerned about the service life of these rollers:

•How long can a mirror finish roller actually be used?

•What factors determine the lifespan of a mirror finish roller?

•Can the service life of a mirror finish roller be extended?

•What is the difference in lifespan between chrome-plated mirror rollers and those with hard-coating finishes?

Based on a professional engineering perspective, this article will provide an in-depth analysis of "mirror roller lifespan" and the "core factors influencing that lifespan," enabling users to better understand how to assess roller longevity and formulate effective maintenance strategies.

Why Is the Lifespan of a Mirror Roller Not a Fixed Value?

Many people seek a definitive answer—for instance:

•Can a mirror roller last for 5 years?

•Can a mirror roller last for 10 years?

•What constitutes a "normal" service life for a mirror roller?

However, in actual industrial practice, the lifespan of a mirror finish roller is not a fixed value; rather, it is collectively determined by a multitude of engineering factors.

As a type of precision roller, the factors influencing its service life include:

•Plating/Coating material

•Operating environment

•Surface load pressure

•Operating temperature

•Running speed

•Material feed method

•Contact with abrasive materials

•Cleaning methods

•Level of equipment maintenance

Consequently, the lifespan of a mirror finish roller exists as a "range" rather than a specific, fixed duration.

To discuss the longevity of a mirror roller, one must first understand its structural composition and materials, the mechanisms by which wear occurs, and the specific manifestations of that wear.

Which Components Determine the Lifespan of a Mirror Finish Roller?

The service life of a mirror-finish roller is primarily determined by the following factors, all of which are closely linked to its surface quality:

1.  The Mirror-Finish Roller Substrate (Body)

This includes materials such as:

•   45# Steel

•   40Cr Steel

•   Alloy Steel

•   Stainless Steel

•   High-strength Alloy Materials

The substrate determines whether the mirror-finish roller can withstand sustained pressure and torque over the long term; it constitutes the "structural foundation" of the roller's service life.

2.  The Mirror-Finish Roller Coating

The true "functional surface" of the mirror-finish roller is its coating, which typically includes:

•   Chrome Plating (Mirror Finish)

•   Hard Chrome Plating (Mirror Finish)

•   Super-hard Coatings (e.g., Tungsten Carbide)

•   Ceramic Coatings

•   Hard Coatings (e.g., PVD, HVOF)

The quality of the coating directly impacts:

•   The duration for which surface finish is maintained

•   Wear resistance

•   Corrosion resistance

•   Susceptibility to scratching

•   The stability of surface roughness

The coating is the most critical component in determining the service life of a mirror-finish roller.

3.  Surface Roughness of the Mirror-Finish Roller

A mirror-finish roller is so named because its surface roughness is extremely low—for instance:

•   Ra ≤ 0.02 μm

•   Ra ≤ 0.01 μm

•   Ra ≤ 0.005 μm

When this surface roughness degrades due to wear, scratching, or irreparable surface contamination, the roller's functional performance declines—even if its underlying structural integrity remains intact.

Consequently, the "duration of maintained mirror-finish effect" serves as a key metric for assessing the roller's service life.

4.  Concentricity, Runout, and Dynamic Balance

Over the course of prolonged use, factors such as:

•   Bearing wear

•   Sustained uneven loading

•   Temperature fluctuations

•   Equipment misalignment

can collectively lead to:

•   Increased radial runout

•   Degraded dynamic balance

•   Slight deformation of the roller body

These mechanical changes indirectly reduce the effective service life of the mirror-finish roller.

What is the typical service life of a mirror-finish roller?

Is there a standard reference range? Based on industry experience, the service life of mirror rollers can be broadly categorized into the following ranges, depending on the type of plating:

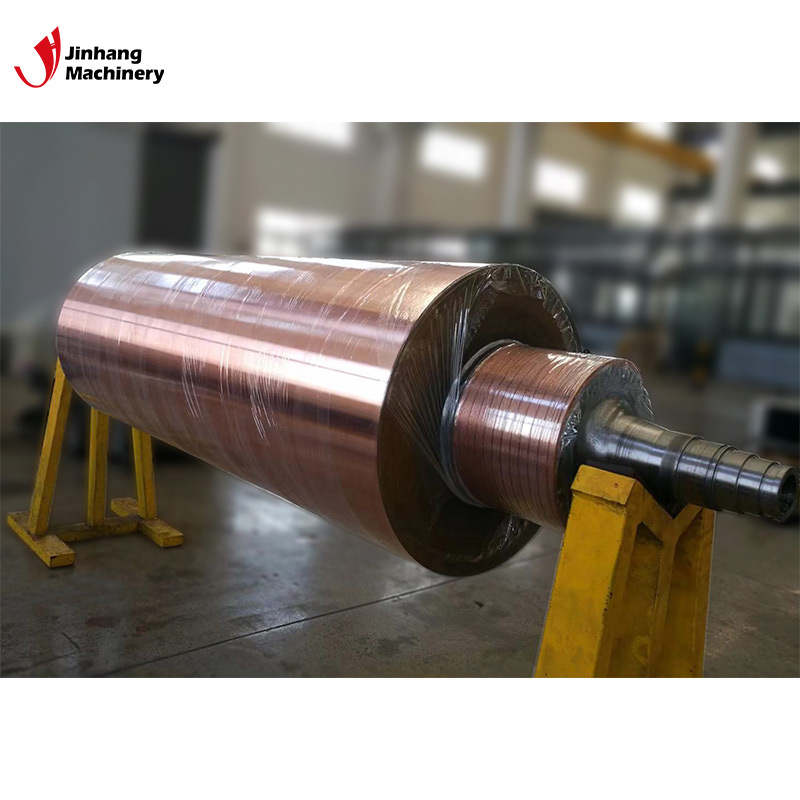

1. Service Life of Chrome-Plated Mirror Rollers

The typical service life for most standard chrome-plated mirror rollers is:

•2–5 years (under normal operating conditions)

•In some cases, with excellent usage and care, this can extend to over 8 years.

The actual duration depends specifically on the degree of wear and the maintenance practices employed.

2. Service Life of Hard Chrome Mirror Rollers

Hard chrome mirror rollers, featuring higher hardness and superior wear resistance, typically offer:

•A standard service life of 3–7 years

•Over 10 years if properly maintained.

These are suitable for equipment requiring higher calendering loads.

3. Service Life of Tungsten Carbide Mirror Rollers

Tungsten carbide coatings are extremely hard, offering wear resistance far superior to that of chrome plating:

•5–12 years

•Potentially even longer under specific environmental conditions.

This currently represents one of the longest-lasting coating options available for mirror rollers.

4. Service Life of Ceramic-Coated Mirror Rollers

Ceramic coatings offer strong wear resistance but tend to be more brittle:

•5–10 years (depending on the specific material and operating conditions).

5. Service Life of Unplated (Polished Metal) Mirror Rollers

These rollers involve polishing the base metal directly to a mirror-like finish:

•They have the shortest service life.

•They are highly susceptible to abrasion and corrosion.

•Typically used in applications with less demanding requirements.

Overall, the service life of mirror rollers varies significantly and cannot be accurately represented by a single fixed numerical value.

What factors primarily determine the service life of a mirror roller?

The following section explains the key factors determining service life from an engineering perspective.

1. Do the Operating Conditions of the Mirror Roller Determine Its Service Life?

Absolutely.

Operating conditions directly dictate the rate of wear:

High-Temperature Environments

High temperatures can lead to:

•Degradation of the plating layer

•Thermal deformation of the base material

•Surface oxidation

•Failure of lubrication systems

The service life of mirror rollers is significantly reduced when operating in environments ranging from 150°C to 250°C.

High-Pressure Loads

The thicker, harder, or under higher pressure the calendering material is:

•The faster the plating layer experiences fatigue

•The more pronounced the wear becomes on the surface texture

•The more susceptible the plating becomes to damage

Operation under high-pressure loads is one of the primary causes for a shortened mirror roller service life.

High-Speed Operation

At high speeds:

•Frictional heat increases.

•Wear accelerates.

•Micro-vibrations impact the surface finish.

These factors have a very significant effect on service life.

2. Does the processed material affect the mirror roller's service life?

It is a critically important factor.

Presence of Particulate Matter

If the material contains hard particles:

•The mirror roller is prone to scratching.

•The plated surface will gradually lose its luster (become matte).

•Surface roughness will gradually deteriorate.

This is the most common cause of a mirror roller's surface "losing its shine."

Presence of Corrosive Substances

Certain chemical materials can corrode the mirror roller's plating, leading to localized surface defects.

Presence of Stickiness

Sticky materials can adhere to the mirror roller; improper cleaning of these residues can result in fine scratches.

Therefore, the specific material being processed is a key determinant of the roller's service life.

3. Does the hardness of the mirror roller's plating determine its service life?

Absolutely.

The higher the plating hardness:

•The better the wear resistance.

•The longer the service life.

•The greater the resistance to scratching.

4. Does the manufacturing quality of the mirror roller determine its service life?

Manufacturing quality directly determines whether the mirror roller can maintain its mirror-like finish over the long term:

•Is the polishing uniform?

•Is the surface roughness stable?

•Is the plating adhesion sufficient?

•Are there any micro-cracks?

•Is the plating thickness consistent?

If defects exist during the manufacturing stage—even if the roller appears bright initially—its subsequent service life will be drastically shortened.

5. Does routine maintenance determine the mirror roller's service life?

It serves as the "second lifeline" for the mirror roller's longevity.

Common maintenance errors can severely shorten service life:

•Wiping the roller with coarse cloths.

•Using metal tools to scrape off residues.

•Failing to perform periodic cleaning as required.

•Using corrosive cleaning agents.

•Leaving the roller exposed to open air for extended periods, leading to oxidation.

Proper maintenance can significantly extend service life:

•Using specialized soft cloths.

•Using neutral cleaning agents.

•Periodically cleaning surface contaminants.

•Utilizing an air-drying system.

•Avoiding prolonged exposure to moisture during downtime.

The quality of maintenance has a profound impact on service life.

What are the signs of service life degradation in a mirror roller?

As the service life of a mirror-finish roller gradually declines, the following symptoms typically emerge:

•Decreased glossiness of the plated surface

•Appearance of matte or hazy patches on the surface

•Formation of fine scratches

•Increase in Ra values (average roughness)

•Increased fluctuation in Rz values (maximum roughness)

•Surface unevenness

•Peeling or flaking of the plating

•Appearance of dark spots or corrosion pits

•Insufficient glossiness in the calendered material

•Uneven surface texture on the processed material

When these phenomena occur—even if the mirror-finish roller remains mechanically functional—its "effective service life" (the duration during which it retains its mirror-finish properties) has already diminished.

Can the service life of a mirror-finish roller be extended?

Yes, and the results can be quite significant.

The following methods can significantly extend service life:

1. Select a plating material with higher hardness (e.g., tungsten carbide).

This can extend the service life by a factor of 1 to 3 times or more.

2. Employ proper cleaning methods.

This helps prevent surface scratches.

3. Utilize an air knife or scraper (specifically, a soft scraper) to protect the surface.

This minimizes abrasive wear caused by adhering contaminants.

4. Control operating pressure and temperature.

This helps reduce material fatigue.

5. Regularly inspect for surface roughness and runout (radial eccentricity).

This helps prevent abnormal wear.

Through proper maintenance, the wear and tear on a mirror-finish roller can be minimized, thereby effectively extending its service life.
